LT-4100 Satellite Communications System

The LT-4100 Satellite Communications System (Iridium Certus® 100) by Lars Thrane A/S is a top-tier maritime communication solution suitable for both professional maritime sectors such as deep sea, fishing, and workboats, as well as leisure markets. It adheres to all international standards for maritime satellite communication.

Performance Highlights

• Global Coverage: Powered by the Iridium® network, the LT-4100 provides seamless voice and data communication globally.

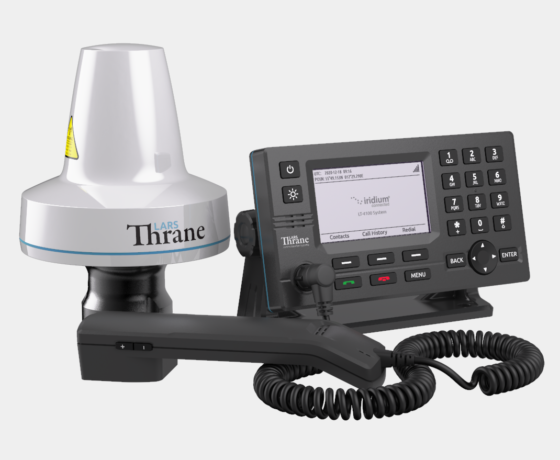

• System Components: Includes a control unit, antenna unit, handset, and cradle, all connected via a single coaxial cable. The cable allows up to 500 meters of separation, enabling optimal antenna placement.
• Communication Capabilities: Offers two high-quality voice channels and IP data rates of 22 kbps (up) and 88 kbps (down), ensuring robust connectivity for both ship-to-ship and ship-to-shore communications.
• Durability: Built to withstand harsh maritime conditions with a temperature range from -40°C to +55°C (-40°F to +131°F).

Installation Ease

• Package Inclusions: Comes complete with all necessary components for installation and operation.
• Mounting Options: Control unit can be mounted via bracket or flush options, while the antenna provides pole mounting choices (1.5″ pipe or 2.0″ pipe).
• User-Friendly Interface: Features a 4.3″ TFT display for straightforward operation, along with a built-in webserver for seamless service and maintenance.

Key Features

• Background IP Rates: 22 kbps (up) / 88 kbps (down)
• Single Cable Setup: Facilitates up to 500 meters of separation between units
• SIP Support: External SIP PABX and up to 8 SIP handsets supported
• Analogue Connectivity: POTS available through Analogue Telephone Adaptors (ATA)
• GNSS/GPS Receiver: High-performance navigation capability
• Ethernet Interface: LAN connectivity on the control unit
• Advanced Display: Large 4.3” TFT display with day/night modes
• Security Measures: Firewall and user authentication for enhanced securitye
• Configuration Flexibility: Supports firewall settings, port forwarding, and remote access
• Maintenance Tools: Web server for easy configuration and maintenance
• Additional Applications: Compatible with Sidekick Satellite Wi-Fi Router and PredictWind Offshore App

This cutting-edge system integrates over 40 years of industry expertise to deliver unparalleled performance and reliability, making it an ideal choice for any vessel’s communication needs.
